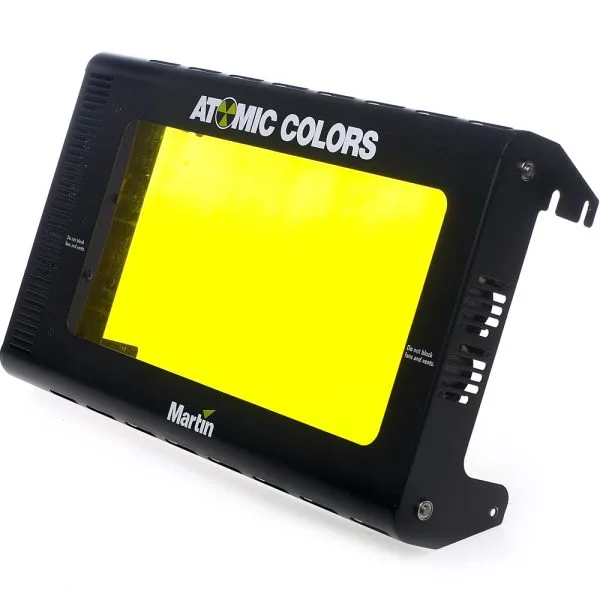

The Atomic Colors is a specially designed color scroller accessory which fits onto the front of the original Atomic 3000 DMX and also the new Atomic 3000 LED – allowing up to ten brightly colored strobe and blinder effects. In combination with the Aura backlight and main output of the Atomic 3000 LED it also delivers stunning three-dimensional eye candy looks.

  • SPECIFICATIONS
    • PHYSICAL
      • Length: 470 mm (18.5 in.)
      • Width: 273 mm (10.7 in.)
      • Height: 102 mm (4.0 in.)
      • Weight: 2.5 kg (5.5 lbs.)
      • Color gel thickness: 0.075 mm (0.003 in.) – 0.125 mm (0.005 in.)
    • DYNAMIC EFFECTS
      • Color gel scrolling: 10 standard colors supplied, custom color gel strings can be fabricated by customer
    • CONTROL AND PROGRAMMING
      • Control options: DMX
      • Cooling fan speed control: Onboard control panel, DMX
      • DMX channels: 1 or 2
      • Gel scrolling speed, ‘gel saver’ mode, light-activated fan operation: Onboard control panel
      • Setting and addressing: Three-button LED control panel
    • DMX compliance: USITT DMX512/1990
    • CONSTRUCTION
      • Housing: Steel
      • Color: Black
      • Finish: Electrostatic powder-coated
    • Protection rating: IP20
    • INSTALLATION
      • Mounting points: Fastens to Atomic fixture
      • Location: Indoor use only, mounted on Atomic fixture
    • Orientation: Any
    • CONNECTIONS
      • Combined power and DMX data from Atomic fixture: 4-pin XLR
    • ELECTRICAL
      • DC Power: 24 V (+/- 10%)
      • DC current: 0.55 A (max.)
      • Power source when used with xenon tube-based Atomic 3000 DMX: MPU-02 or MPU-08 external PSU
    • THERMAL
      • Cooling: Forced air (4-speed fans)
      • Maximum ambient temperature (Ta max.): 40° C (104° F)
      • Minimum ambient temperature (Ta min.): 10° C (50° F)
    • INCLUDED ITEMS
      • 10-color gel string (installed): P/N 91611090
      • 5 m power/data cable, 4-pin XLR
